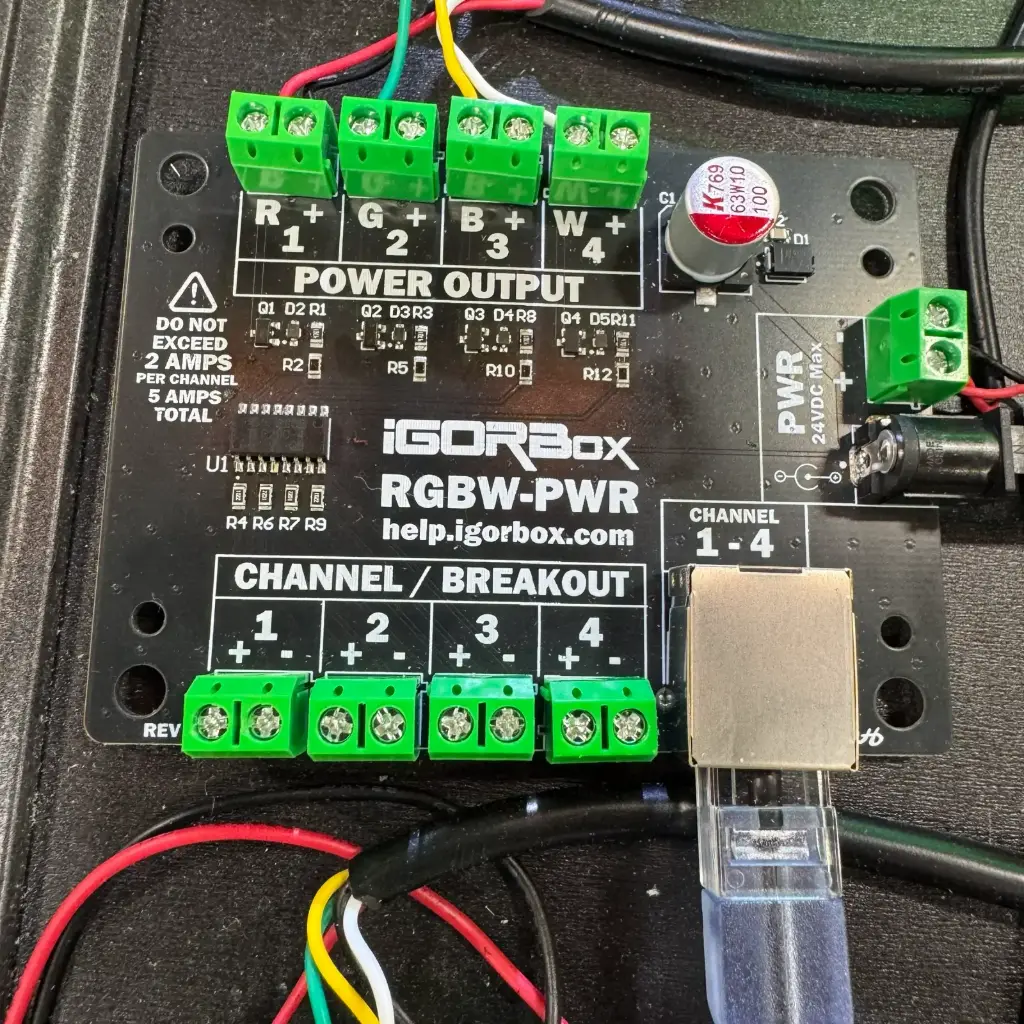

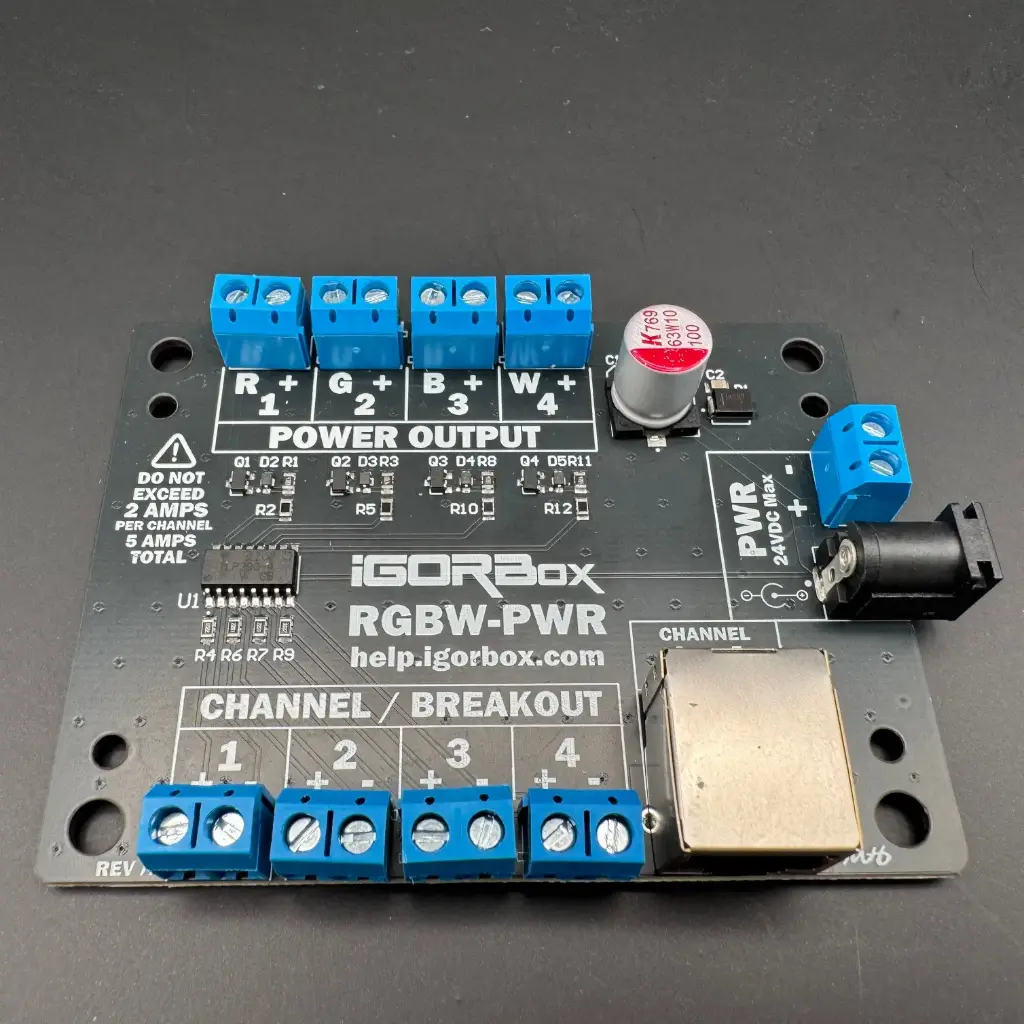

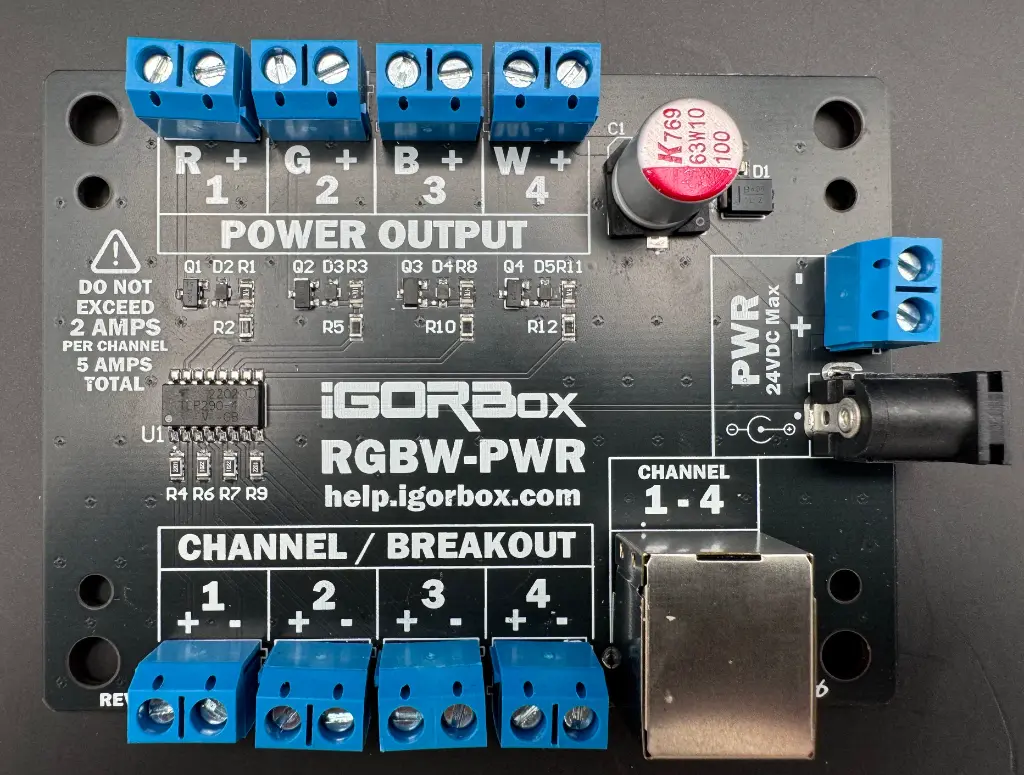

RGBW-PWR Power Injector

Boost any 4 channels of your LED Controller to 2A each — fully isolated.

The RGBW-PWR is a compact power injector breakout that lets you drive higher-current loads from your IgorBox LED Controller without compromising the controller itself. It delivers up to 2A per channel across 4 channels, with complete electrical isolation between your control logic and your power loads.

How it connects Plug it directly into the LED Controller's channel 9–16 breakout ports for a clean, wire-free install, or wire any 4 channels of your choice into the on-board terminal blocks.

Power it your way Feed the breakout via a standard 2.1mm DC barrel jack or the dedicated screw-terminal power input — whichever suits your wiring. The injected supply powers your devices only; your LED Controller stays on its own rail.

Run any voltage your show needs Because the RGBW-PWR is fully isolated from the LED Controller, you can run the controller at 12VDC and inject 24VDC (or whatever your loads require) into your devices. No shared grounds, no voltage compromises, no risk of a high-current fault reaching your control electronics.

Specs

• 4 channels, up to 2A per channel
• 5A max total through the board
• Inputs: 2.1mm DC barrel jack or screw terminal
• Direct fit on LED Controller channels 9–16, or any 4 channels via terminal blocks
